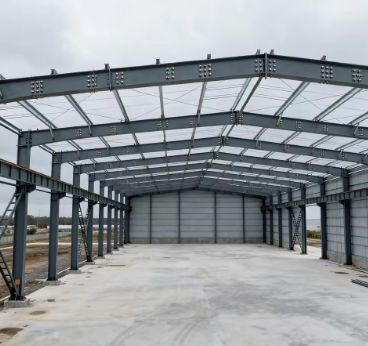

Prefabricated Buildings Steel Structure Warehouse Metal Building Prefab Workshop Steel Building Construction
| 起源の場所 | 中国、ヘベイ |
|---|---|
| ブランド名 | BAODU |
| 証明 | ISO9001,CE |
| モデル番号 | スチールウェアハウス |
| 文書 | 製品説明書 PDF |
| 最小注文数量 | 1000squareメートル |
| 価格 | $25-45square meter |
| パッケージの詳細 | 一般に、鋼構造のために、鋼フレームパッキングを使用して、商品を壊さないようにします。サンドイッチパネルとカラースチールシートには、プラスチック製の梱包を使用します。クライアントが要件に応じて特別な梱包 |
| 受渡し時間 | 45days |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力 | 1日あたり5000平方メートル/平方メートル |
試供品およびクーポンのための私に連絡しなさい。
WhatsAPPについて:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品名 | プレハブ建築物 鉄骨造倉庫 金属建築物 プレハブ工場 鉄骨造建築工事 | キーワード | 鉄鋼の建材倉庫 |
|---|---|---|---|
| 壁被覆材 | EPS/岩毛/ガラス繊維の羊毛/PUサンドイッチパネルまたは鋼板 | 加工サービス | 曲げ、溶接、デカイル、切断、パンチ |
| アプリケーション | 鉄鋼の倉庫,工場,または物流倉庫 | 屋根の被覆 | EPS/岩毛/ガラス繊維の羊毛/PUサンドイッチパネルまたは鋼板 |
| 図面デザイン | Sap2000/Autocad/Pkpm/3D3s/Tekla | パフォーマンス | 安全、防水、健全な絶縁された聞保存等。 |
| 保証 | 50年以上 | メインフレーム | 固体H字型鋼ビーム |
| ハイライト | prefabricated steel warehouse building,metal workshop prefab construction,steel structure warehouse with warranty |
||
製品の説明
Prefabricated Buildings Steel Structure Warehouse Metal Building Prefab Workshop Steel Building Construction
As a professional supplier of steel structure workshops, we deliver high-quality, cost-effective building solutions tailored to industrial production, warehousing, logistics, and manufacturing needs worldwide. Our steel structure workshops stand out for their exceptional performance, flexibility, and sustainability--ideal for businesses seeking reliable and future-ready facilities.
Core Advantages
- Superior Structural Safety & Durability
- Constructed with high-grade Q235/Q355 steel materials, our workshops boast excellent load-bearing capacity, corrosion resistance, and seismic performance (complying with international standards like AISC, Eurocode 3, or GB)
- Anti-rust treatment (galvanization/painting) and weather-resistant design ensure a service life of 50+ years, reducing maintenance costs significantly
- Wind load resistance (up to 0.75kN/m²) and snow load capacity (customizable per region) guarantee stability in extreme conditions
- Flexible Design & Customization
- Fully customizable dimensions (span: 10-50m, length: unlimited, eave height: 4-12m) to fit your production workflow and equipment layout
- Modular prefabricated components enable easy expansion, renovation, or relocation as your business grows
- Optional configurations: crane systems (1-50t), mezzanine floors, insulation layers, ventilation systems, and fireproof coatings
- Efficient Construction & Cost Savings
- Prefabricated production in our factory reduces on-site construction time by 30-50% compared to traditional concrete buildings
- Lightweight structure lowers foundation costs and transportation expenses
- High recyclability of steel materials aligns with environmental standards and reduces carbon footprint
- Wide Application Scope
- Industrial workshops, manufacturing plants, warehouses, logistics centers, aircraft hangars, exhibition halls, and agricultural sheds
- Suitable for various climates (tropical, temperate, cold regions) with adaptive design adjustments
Quality Assurance
All steel components undergo strict quality inspections (ultrasonic testing, dimensional checks) and are certified by ISO 9001, CE, or other international certifications.
Professional engineering team provides one-stop services: design, production, delivery, installation guidance, and after-sales support.
| Name | Steel Structure Building |
|---|---|
| Main Material | Q235 - Q420 Welded H Beam And Hot Rolled Section Steel |
| Surface | Painting Or Galvanizing |
| Roof And Wall Panel | EPS Sandwich Board, Single Corrugated Steel Plate, Glass Cotton Colored Board for Customers'Choice |
| Window | PVC Or Aluminum Alloy |
| Door | Sliding Door Or Rolling Shutter Door |
| Service |
Design: We have experienced designers to design. Manufacture: We can manufacture all kinds of steel structure products according to customers'needs. Installation: We provide detailed drawings to ensure installation.It also provides installation,supervision and training services. We can also send a team of engineers to guide or install on site. |
| Packing |
|
| Quality Inspection | Factory Self-inspection, Customer Inspection, Third Party Inspection |
Our Capabilities
We have a professional design team about 40 people, with 10 years design experience. We can meet your individual needs. And multi-type steel components, roof and wall panels, doors and windows for choosing.
| Location (where will be built) | _____country, area |
|---|---|
| Size: length*width*height | _____mm*_____mm*_____mm |
| wind load (max. wind speed in 50 years) | _____kn/m2, _____km/h, _____m/s |
| snow load (max. snow height) | _____kn/m2, _____mm |
| anti-earthquake | _____level |
| brickwall needed or not | If yes, 1m or 1.2m high or 1.5m high |
| thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former. |
| mezzanine | If with mezzanine, what's the size and height? |
| door quantity & size | _____units, _____(width)mm*_____(height)mm |
| window quanity & size | _____units, _____(width)mm*_____(height)mm |
| crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
| Roof skylight panel | PC/ PVC/ FRP |
| Ventilator | unpower/ power ventilator |
Material Components
Bolt Accessories
Wall and Roof System
Product Packaging
Why Choose Our Steel Structures?
- Superior Strength & Durability
- Made from high-grade steel (Q235, Q355, or ASTM A572), our structures offer exceptional load-bearing capacity, resistance to extreme weather, and long-term performance
- Corrosion-resistant coatings (hot-dip galvanizing, painted, or powder-coated) protect against rust and degradation, even in harsh environments
- Customizable & Modular Designs
- We provide bespoke solutions tailored to your needs--from clear-span widths, height, and roof styles to door/window placements and insulation options
- Pre-engineered components ensure fast, error-free assembly, reducing labor costs and construction time
- Cost-Effective & Eco-Friendly
- Steel is 100% recyclable, making our structures a sustainable choice
- Lightweight yet strong components minimize foundation requirements and shipping costs
- Wide Applications
- Warehouses & Logistics Centers: Large, column-free spaces for maximum storage
- Industrial Buildings: Factories, workshops, and manufacturing plants
- Commercial Spaces: Supermarkets, showrooms, and offices
- Agricultural Buildings: Barns, grain storage, and poultry farms
- Special Structures: Hangars, stadiums, and multi-story buildings
- Certification & Quality Assurance
- Our products comply with ISO 9001, CE, and other global certifications
- Strict quality control from material sourcing to production and packaging
FAQ
Q1: What will the client provide before the factory offers good quotation?
A: When we receive an inquiry from the client, the client please fills purchasing intention sheet, providing us with information about house dimensions, draft drawing, layout and materials for prefabricated house. We will design the drawings and offer a competitive quotation with the above information.
Q2: What drawing of the house will the factory supply?
A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.
Q3: How many types of sandwich panel do you have?
A: We have an EPS(polystyrene)sandwich panel, rock wool sandwich panel, and PU(polyurethane)sandwich panel.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. The EPS volume weight is 8-20Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 80-120Kg /m3, fire-proof, sound-insulation, heat-preservation.
3.Glass wool sandwich panel: thickness is 50mm, 75mm, 100mm. Glass wool volume weight is 30-60Kg /m3, fire-proof, sound-insulation, heat-preservation.
4.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 40-80/m3 water-proof, fire-proof, heat-proof, heat-insulation, heat-preservation, sound-insulation.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. The EPS volume weight is 8-20Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 80-120Kg /m3, fire-proof, sound-insulation, heat-preservation.
3.Glass wool sandwich panel: thickness is 50mm, 75mm, 100mm. Glass wool volume weight is 30-60Kg /m3, fire-proof, sound-insulation, heat-preservation.
4.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 40-80/m3 water-proof, fire-proof, heat-proof, heat-insulation, heat-preservation, sound-insulation.
Q4: How many colors do your sandwich panels have?
A: RAL.
