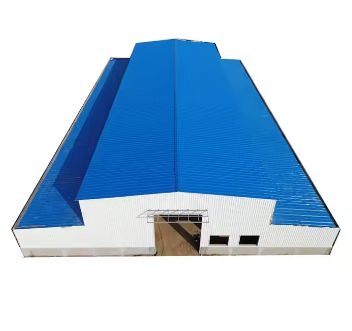

Prefabricated Carbon Steel Structure Industrial Plant Workshop Warehouse and Outdoor Hall/ Farmhouse Storage Solution
| 起源の場所 | 中国、ヘベイ |
|---|---|
| ブランド名 | BAODU |
| 証明 | ISO9001,CE |
| モデル番号 | スチールウェアハウス |
| 文書 | Baodu Company Profile.pdf |
| 最小注文数量 | Discussible |
| 価格 | Reasonable |
| パッケージの詳細 | 一般に、鋼構造のために、鋼フレームパッキングを使用して、商品を壊さないようにします。サンドイッチパネルとカラースチールシートには、プラスチック製の梱包を使用します。クライアントが要件に応じて特別な梱包 |
| 受渡し時間 | 21日 |
| 支払条件 | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力 | 月額10000平方メートル/平方メートル |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品名 | プレハブ炭素鋼構造産業工場ワークショップ倉庫と屋外ホール/農家の保管ソリューション | キーワード | 鉄骨構造の建物の倉庫 |
|---|---|---|---|
| 構造タイプ | 長距離グリッド構造 | 使用法 | ワークショップ倉庫建設事務所 |
| 描画デザイン | SAP2000 /AutoCAD /PKPM /3D3S /TEKLA | 二次構造 | パーリン;ブレース;膝のブレースなど |
| アプリケーション | アパート、オフィスビル、家禽の家、ガレージ小屋、倉庫、鉄骨構造の建物 | アフターセールサービス | オンライン テクニカル サポート、現地の訓練 |
| デザインスタイル | モダンな | プロジェクトソリューション機能 | 3Dモデル設計、プロジェクトのための総解決 |
| ハイライト | prefab steel warehouse building,carbon steel industrial plant structure,outdoor farmhouse storage workshop |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
Prefabricated Carbon Steel Structure Industrial Plant Workshop Warehouse and Outdoor Hall/ Farmhouse Storage Solution
Product Attributes
| Attribute | Value |
|---|---|
| Product name | Prefabricated Carbon Steel Structure Industrial Plant Workshop Warehouse and Outdoor Hall/ Farmhouse Storage Solution |
| Keyword | Steel Structure Building Warehouse |
| Structure type | Long-span Grid Structure |
| Usage | Workshop Warehouse Construction Office |
| Drawing Design | SAP2000/AutoCAD /PKPM /3D3S/TEKLA |
| Secondary Structure | Purlin; Brace; Knee Brace etc |
| Application | Apartment, Office Building, poultry houses, garage shed，warehouse，steel structure building |
| After-sale Service | Online technical support, Onsite Training |
| Design Style | Modern |
| Project Solution Capability | 3D model design, total solution for projects |
Product Specifications
| Item | Description |
|---|---|
| Model | Single slope,double slope,multi slope.Single span,double-span,Multi-span Single floors, Double floors |
| Main steel grade | Q235B, Q345B |
| Column & Beam | Welded or Hot rolled H-section steel, constant cross-section or variable cross-section. H 160~2000*150~800*6/8/10*6/8/10/12mm. Two coats of primer and finish paint. |
| Wall & Roof | EPS,Fiber glass,Rockwool,PU sandwich panel 50/75/100mm, and corrugated steel sheet 0.5~0.8 mm |
| Wall & Roof purlin | C / Z channel steel, Hot dip galvanized.C80~C300, Z100~Z300 |
| Bracing | X or V type Steel round bar, Angle steel and tubes, painted or galvanized. |
| Strut | Steel round pipe and tube, and angle steel, painted. |
| Sag rod | Steel round bar, galvanized. |
| Eave Gutter | Galvanized / Stainless steel sheet |
| Downspout | UPVC pipe Diameter 110mm |
| Trim & Flashing | Bended color steel sheet |
| Door | Roll-up, Sliding, Lifting and Hinged door etc |
| Window | Plastic steel, Aluminum alloy window etc |
| Canopy | Color corrugated steel sheet, Sandwich panel |
| Skylight | Polycarbonate sheet 0.8/1.2mm |
| Roof ventilation | Monitor or natural ventilator |
| Bolt | Foundation anchor bolt 10.9S 8.8S, Commercial bolt 4.8S, Expansion bolt. |
| Accessories | Screw, Rivet, Foam closures, Sealant, Ventilator, etc |
Design Drawing
Design Parameters
| Parameter | Considerations |
|---|---|
| Live load on roof | KN/M² |
| Wind speed | KM/H |
| Snow load | KG/M² (If Applicable) |
| Earthquake load | If Applicable |
| Doors and Windows | Customizable styles |
| Crane Specifications | If required: span, lift height, capacity, wheel pressure |
Processing
Certifications
Support and Services
Our prefabricated steel structures come with comprehensive technical support and services to ensure project success. Our expert team provides:
- Installation guidance and detailed drawings
- Maintenance advice and troubleshooting support
- Dedicated customer service for complete satisfaction
- Technical consultation throughout your project
Packing and Shipping
All components are carefully packaged for secure transportation:
- Sturdy wrapping and crating for damage prevention
- Clear labeling for easy identification
- Reliable shipping partners for timely delivery
- Tracking information provided for all shipments
Why Choose Us
- We have a team of professional engineers, most of whom have an average of 20 years of experience in the steel structure design field. Our company has extensive experience in design, manufacture, installation and more. The work staff have excellent skills. Some of them have helped customers install warehouses around the world.
- We offer one stop service. Construction drawings, calculation sheets will be provided to help you get construction permits. Foundation design could be made for free if needed. We can create 3D drawings to show the view. Installation drawings will be provided and steel structure columns, beams will be numbered to assist with installation.
- We will send you spare bolts and panels in case of any damage during installation.
- Efficiency is our pursuit. Every inquiry and email will be replied to immediately. Every question will receive high attention.
- We possess more than 40 sets of large precise and domestically advanced processing equipment, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and more.
- We provide detailed packing lists for every container when loading to make unloading easier.
- Form A, Form E, CE, GOST, etc certifications are available.
